Parts

NEW! 1.5″ National Hose Thread Unpolished Short Neck Swivel, Bolt-on 500256-SEU-V0625-S

Bolt-on 1.5″ short neck swivel with 2″ Victaulic connection. Other 1.5″ swivel configurations available – see print.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 1.5″ National Hose Thread Polished Short Neck Swivel, Bolt-on 500256-SEP-V0625-S

Bolt-on 1.5″ short neck polished swivel with 2″ Victaulic connection. Other 1.5″ swivel configurations available – see print.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 1.5″ National Hose Thread Polished Long Neck Swivel, Bolt-on 500256-SELP-V0625-S

Bolt-on 1.5″ long neck polished swivel with 2″ Victaulic connection. Other 1.5″ swivel configurations available – see print.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 1.5″ National Hose Thread Polished Short Neck Bumper Swivel 500256-SEP-V0650-F

Short neck front bumper polished swivel assembly with 2″ Victaulic connection. Available in various configurations – see print.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 1.5″ National Hose Thread Polished Long Neck Bumper Swivel 500256-SELP-V0650-F

Long neck front bumper polished swivel assembly with 2″ Victaulic connection. Available in various configurations – see print.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 2.5″ National Hose Thread Polished Long Neck Swivel, Bolt-on 500255-SEP-V0775-S

Bolt-on 2.5″ Swivel. Other 2.5″ polished swivel configurations are available.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 2.5″ National Hose Thread Polished Long Neck Swivel, straight 2.5″ pipe 500255-SEP-P0800

2.5″ Polished swivel with straight 2.5″ pipe.

Contact us to configure a piping connection and mounting configuration to fit your specific application.

NEW! 2.5″ Female National Hose Thread swivel x 2.5″ Valve Flange Assembly 500248

Ideal for auxillary intakes. 2.5″ female swivel National Standard hose thread.

New! 2.5″ Female National Standard Hose Swivel x 3″ Victaulic® with Mounting Flange 500245

Polished flange, for use with our 3″ and 4″ tanker Fill Valves. This part complements our full line of polished flanged 1.5″ NH, 2.5″ NH and 3″ NH discharge castings.

NEW! Weld Drain Ports for 2″, 2.5″ 3″, 4″ and 5″ pipe 500260-XX

Weld fitting to add a horizontal .75″ FNPT drain port to 2″, 2.5″, 3″, 4″ and 5″ pipe.   Ideal for adding a drain port in areas such as discharges and front/rear suction piping.  Utilize this fitting to keep drain valves out of the angle of approach or departure.

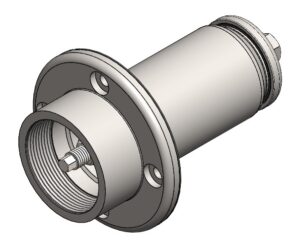

Tanker Automatic Fill Valve with 4″ Female NPT connection 500175

4″ Female NPT Fill Valve is an internally mounted check-type fill valve, capable of flowing at a rate up to 1,000 GPM with a 4″ FNPT connection.  Ideal for engines and tankers, opens at approximately 6psi.

Fill valves are also available in a 3” male NPT connection (500115M) and 3” victaulic (500115V) connection for ease of installation.

The Fill Valve is self-deflecting, requiring no additional diffusion device.  The Fill Valve is constructed of 100% stainless steel avoiding the use of dissimilar metals.   The spring-actuated piston-type sealing mechanism minimizes seal wear and provides positive sealing of the valve after shutting off the valve at the feed source.  The device is designed to be self-cleaning utilizing a replaceable EPDM rubber gasket.  Less than 6psi is required to open the valve.

Major U.S. fire apparatus poly tank manufacturers have the cutout for this fill valve and can design the tank wall with tapped holes for ease of installation.

Utilizing our optional stainless steel internal tank mounting plate, the Fill Valve mechanism can be attached directly through an existing tank wall.

Tanker Automatic Fill Valve with 3″ Victaulic® connection 500115V

3” Victaulic Fill Valve is an internally mounted check-type fill valve, capable of flowing at a rate up to 1,000 GPM with a 3″ victaulic connection.  Ideal for engines and tankers, opens at approximately 6 psi.

Fill valves are also available in a 3” male NPT connection (500115M) and 4” female NPT pipe thread connection (500175) for ease of installation.

The Fill Valve is self-deflecting, requiring no additional diffusion device.  The Fill Valve is constructed of 100% stainless steel avoiding the use of dissimilar metals.   The spring-actuated piston-type sealing mechanism minimizes seal wear and provides positive sealing of the valve after shutting off the valve at the feed source.  The device is designed to be self-cleaning utilizing a replaceable EPDM rubber gasket.  Less than 6psi is required to open the valve.

Major U.S. fire apparatus poly tank manufacturers have the cutout for this fill valve and can design the tank wall with tapped holes for ease of installation.

Utilizing our optional stainless steel internal tank mounting plate, the Fill Valve mechanism can be attached directly through an existing tank wall.

Tanker Auto Fill Valve with 3″ MNPT connection 500115M

3” Male Fill Valve is an internally mounted check-type fill valve, capable of flowing at a rate up to 1,000 GPM with a 3″ Male NPT connection.  Ideal for engines and tankers, opens at approximately 6 psi.

Fill valves are also available in a 3” Victaulic connection (500115V) and 4” female NPT pipe thread connection (500175) for ease of installation.

The Fill Valve is self-deflecting, requiring no additional diffusion device.  The Fill Valve is constructed of 100% stainless steel avoiding the use of dissimilar metals.   The spring-actuated piston-type sealing mechanism minimizes seal wear and provides positive sealing of the valve after shutting off the valve at the feed source.  The device is designed to be self-cleaning utilizing a replaceable EPDM rubber gasket.  Less than 6psi is required to open the valve.

Major U.S. fire apparatus poly tank manufacturers have the cutout for this fill valve and can design the tank wall with tapped holes for ease of installation.

Utilizing our optional stainless steel internal tank mounting plate, the Fill Valve mechanism can be attached directly through an existing tank wall.

Split 6.5″ dia. Backer Plates for retrofitting Direct Tank Fill Flanges into existing water tanks 500041

Use two of these split backer casting when installing 500145, 500146 and 500147 Direct Tank Fill Flanges into existing water tanks.

Quantity 2 required of this part.

Gasket 500139 available.

Part Number 500153 Full Backer Plates also available.

6.5″ dia. Full Backer Casting for all Direct Tank Fill Flanges 500153

Use this backer casting with all direct tank fill flanges.

Gasket 500139 available.

Part Number 500141 Split Backer Plates also available for use inside existing water tanks when adding a direct tank fill flange to an existing water tank.

2″ Valve x 2″ Pipe Weld Flange 500184

Easily add a 2″ valve flange to 2″ SCH 10 or 40 pipe.

Fits both Akron® and Elkhart® valves.



2.5″ Valve x 2.5″ Pipe Weld Flange 500185

Easily add a 2.5″ valve flange to 2.5″ SCH 10 or 40 pipe.

Fits both Akron® and Elkhart® valves.



3″ Valve x 3″ Pipe Weld Flange 500186

Easily add a 3″ valve flange to 3″ SCH 10 or 40 pipe.

Fits both Akron® and Elkhart® valves.



2″ Valve Flange x 2″ Victaulic® and 3/4″ Drain 500011 Arriving 8/10/21.

2.0″ valve flange that fits both Akron® and Elkhart® valves.

2.5″ Valve Flange x 2.5″ Victaulic® and 3/4″ Drain 500012 Arriving 8/10/21.

2.5″ valve flange that fits both Akron® and Elkhart® valves.

3″ Valve Flange x 3″ Victaulic® and 3/4″ Drain 500013

3″ valve flange that fits both Akron® and Elkhart® valves.

NEW! 2.5″ Valve Flange x 3″ Victaulic® with 1/4″ and 3/4″ FNPT Ports 500254

2.5″ valve flange that fits both Akron® and Elkhart® valves with 3″ Victaulic/weld connection.

3″ Valve Flange x 4″ Weld / 4″Victaulic® 500069

Ideal for tank to pump connections and plumbing Large Diameter discharges from a 3″ valve.  Fits Akron® and Elkhart® valves.

Standoffs for all Swivel Valve Flanges. Quantity 4 required for each swivel flange.

Use (4) standoffs for each swivel valve flange.

The standoff secures our swivel valve flanges to the valve body.

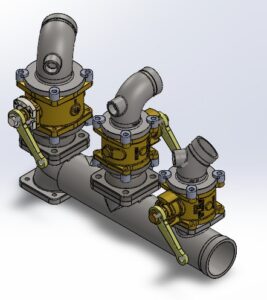

2″ Swivel Valve Flange x 2″ Victaulic®, 90 Degree 500121

Greatly simplify flexible hose installations with this flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

2.5″ Swivel Valve Flange x 2.5″ Victaulic®, 90 Degree 500122

Greatly simplify flexible hose installations with this flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

3″ Swivel Valve Flange x 3″ Victaulic®, 90 Degree 500123

Greatly simplify flexible hose installations with this flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

2″ Swivel Valve Flange x 2″ Victaulic®, 45 Degree 500124

Greatly simplify flexible hose installations with this flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

2.5″ Swivel Valve Flange x 2.5″ Victaulic®, 45 Degree 500125

Greatly simplify flexible hose installations with this flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.
Read more

3″ Swivel Valve Flange x 3″ Victaulic®, 45 Degree 500126

3″ 360 degree swivel valve flange by 3″ 45 degree victaulic with .75″ FNPT fitting. Fits Akron® and Elkhart® valves.

Requires (4) 500119 standoffs.

[Best_Wordpress_Gallery id=”5″ gal_title=”All images”]

115 x 2″ Swivel Valve Flange 500187

115 Flange by 2″ swivel valve flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

115 x 2.5″ Swivel Valve Flange 500188

115 Flange by 2.5″ swivel valve flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

115 x 3″ Swivel Valve Flange 500189

115 Flange by 3″ swivel valve flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each flange requires the purchase of (4) 500119 standoffs.

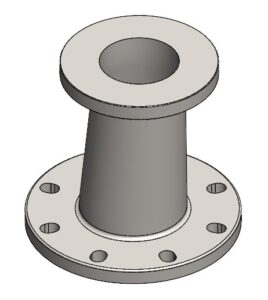

115 x 2.5″ Swivel Valve Extension 500237

115 flange x 2.5″ swivel valve flange.  Fits Akron® and Elkhart® valves.   Casting is offset 4 degrees and can be rotated to 4 degrees up or 4 degrees down.

Swivel valve flange allows 2.5″ valve to be easily oriented in any position.

Requires use of (4) 500119 standoffs.

115 x 3″ Swivel Valve Extension 500238

115 flange x 3″ swivel valve flange.  Fits Akron® and Elkhart® valves.   Casting is offset 4 degrees and can be rotated to 4 degrees up or 4 degrees down.

Swivel valve flange allows 3″ valve to be easily oriented in any position.

Requires use of (4) 500119 standoffs.

115 Flange 90 degree x 2.5″ Swivel Valve Flange 20-10-FP0028

Auxillary Inlet casting: 115 Flange by 2.5″ swivel valve flange that rotates a full unobstructed 360°.  Fits both Akron® and Elkhart® valves.

Each casting requires the purchase of (4) 500119 standoffs.

115 x 2.5″ Pipe Weld Fitting 500008

115 flange x 2.5″ recessed pipe.  Ideal for welding a 115 flange to 2.5″ pipe.  Recessed groove on the flange face for a quad-ring.

NEW! 1.5″ National Hose Thread x 2″ Victaulic® with Polished Mounting Flange 500259

Add a 1.5″ National Hose Thread side-discharge to your pump module or anywhere a discharge is needed. Polished stainless steel finish. No chrome plating.

2.5″ National Hose Thread with Polished Mounting Flange x 2.5″ Victaulic® 500239

Quickly add a 2.5″ National Hose Thread side-discharge to your pump module or anywhere a discharge is needed.   Polished stainless steel finish.  No chrome plating.

NEW! 2.5″ National Hose Thread with Polished Mounting Flange x 3″ Victaulic® 500243-N

Quickly add a 2.5″ National Hose Thread side-discharge with 3″ piping to your pump module or anywhere a discharge is needed. Polished stainless steel finish. No chrome plating.

3″ National Hose Thread with Polished Mounting Flange x 3″ Victaulic® 500240

Quickly add a 3″ National Hose Thread side-discharge to your pump module or anywhere a discharge is needed.   Polished stainless steel finish.  No chrome plating.

2.5″ National Hose Thread 30 Degree Droop with Polished Mounting Flange x 2.5″ Victaulic® with .75″ FNPT port 500241

Quickly add a 30 Degree Droop 2.5″ National Hose Thread with .75″ FNPT drain port side-discharge to your pump house or anywhere a discharge is needed.

Polished stainless steel finish.  Not chrome plated.

NEW! 2.5″ National Hose Thread 30 Degree Droop with Polished Mounting Flange x 3″ Victaulic® 500257

Add a 30 Degree Droop 2.5″ National Hose Thread x 3″ piping side-discharge to your pump house or anywhere a discharge is needed.

Polished stainless steel finish.  Not chrome plated.

Arriving December 15th: 2.5″ National Hose Thread 30 Degree Long Droop with Polished Mounting Flange x 3″ Victaulic® with .75″ FNPT port 500268

Quickly add a 30 Degree Droop 2.5″ National Hose Thread x 3″ Victaulic with .75″ FNPT drain port side-discharge to your pump house or anywhere a discharge is needed.

Polished stainless steel finish.  Not chrome plated.

3″ National Hose Thread 30 Degree Droop with Polished Mounting Flange x 3″ Victaulic® 500242

Quickly add a 3″ 30 Degree Droop National Hose Thread side-discharge to your pump house or anywhere a discharge is needed.

Polished stainless steel finish.  No chrome plating.

Front Manifold – Left Side 500236

Left-hand manifold for midship pumps.  Can be utilized with common 3″ dia. foam system injection/check valve castings.

(1) 2″ valve flange

(1) 115 flanges for use with 500187, 500188 and 500189 115 x swivel valve flanges.

(1) 115 pump mounting flange

Tapped holes for auxiliary connections.

All Bolt-together Left-Hand Front Manifold with Accessory Flanges

See attached print for the available flanges that bolt to our left-hand front manifold. Easily attaches to midship pumps such as the Hale® QFlo® and QMax® and Waterous® CS Series Pumps. Eliminates costly welding time.

Front Manifold – Right Side 500235

Right-hand manifold for midship pumps.  Can be utilized with common 3″ dia. foam system injection/check valve castings.

(1) 2″ valve flange

(2) 115 flanges for use with 500187, 500188 and 500189 115 x swivel valve flanges.

(1) 115 pump mounting flange

Tapped holes for auxiliary connections.



All Bolt-together Right-Hand Front Manifold with Accessory Flanges

See attached print for the available flanges that bolt to our right-hand front manifold. Easily attaches to midship pumps such as the Hale® QFlo® and QMax® and Waterous® CS Series Pumps. Eliminates costly welding time.

4″ Pipe x 3″ Victaulic® Weld Fitting 500026

Handy fitting to add a 3″ vic or weld butt to the end of 4″ pipe.

2.5″ Valve x 3″ Direct Tank Fill with Diffuser 500145

Use this flange to easily add a direct tank fill valve to an apparatus water tank.  Fits Arkon® and Elhkart® valves.

U.S. based plastic tank manufacturers have the hole template that can be specified for use with this flange and can provide tapped holes in the tank wall for fast installation.

A 3″ cap is also available to cap off the port on the tank.

Gasket 500139 available.

Part Number 500153 Full Backer Plate or Part Number 500141 Split Backer Plates available for use inside the water tank.



3″ Valve x 3″ Direct Tank Fill with Diffuser 500146

Use this flange to easily add a direct tank fill valve to an apparatus water tank.  Fits Arkon® and Elkhart® valves.

U.S. based plastic tank manufacturers have the hole template that can be specified for use with this flange and can provide tapped holes in the tank wall for fast installation.

A 3″ cap is also available to cap off the port on the tank.

Gasket 500139 available.

Part Number 500153 Full Backer Plate or Part Number 500141 Split Backer Plates available for use inside the water tank.



4″ Valve x 3″ Direct Tank Fill with Diffuser 500147

Use this flange to easily add a direct tank fill valve to an apparatus water tank.  Fits Arkon® and Elkhart® valves.

U.S. based plastic tank manufacturers have the hole template that can be specified for use with this flange and can provide tapped holes in the tank wall for fast installation.

A 3″ cap is also available to cap off the port on the tank.

Gasket 500139 available.

Part Number 500153 Full Backer Plate or Part Number 500141 Split Backer Plates available for use inside the water tank.

Tank Port Blank Off Cap 500148

Blank off cap used to cap off a port on a water tank not currently being utilized for a direct tank fill.

Gasket 500139 available.

3″ Tank to Pump Check Valve Casting for 6″ Pipe 500205-6

Quickly add a tank to pump check valve to 6″ pipe.

Requires (1) 500019 3″ Clapper Casting and (2) 500021 Stainless Steel Bushings.

Tank to Pump Check Valve Casting for 3″ Valve and Coped 6″ Pipe 500020

Tank To Pump Casting coped for 6″ Pipe with 3″ Valve Flange.  Simplifies tank to pump plumbing with a 3″ check valve. Casting can be cut to a straight end.

Fits Akron and Elkhart valves.

Requires (1) 500019 3″ Clapper Casting and (2) 500021 Stainless Steel Bushings.

Bushing for Tank to Pump Castings 500019

Bushing for use in all Tank To Pump castings (500020, 500205).

Quantity 2 bushings required for each Tank To Pump casting.

3″ Clapper for Tank to Pump Castings 500021

Use this clapper with the 500020 and 500205 Tank To Pump Castings.

4″ Tank Outlet x 3″ Victaulic® 500192

Utilize this 4″ tank outlet x 3″ Victaulic end to plumb toward tank to pump valves.   This casting bolts to the 500154 casting inside the water tank.

4″ Tank Outlet x 4″ Victaulic® 500190

Utilize this 4″ tank outlet x 4″ Victaulic end to plumb toward tank to pump valves.   This casting bolts to the 500154 casting inside the water tank.

4″ Water Tank Outlet Anti-Swirl Casting – mounts inside tank 500154

Utilize this casting inside water tanks along with either a 4″ outlet x 4″ Vic (500190) or 4″ outlet x 3″ Vic (500192) casting.  Gasket 500191 is available.

The part is designed so that the area of the water coming under the lip ½” from the bottom of the tank is much larger than the area of the 4” Vic outlet (Optional 3” Vic outlet).  This reduces the velocity of the water to limit the potential for a vortex.  Additionally, the feet at the bottom of the part are designed to prevent rotation and act as vortex breakers.

Eliminates cumbersome internal tank welding.



2″ FNPT Tank Port 500227

For use when adding 2″ FNPT ports into a water tank with a diffuser.

2.5″ FNPT Tank Port 500228

For use when adding 2.5″ FNPT ports into a water tank with a diffuser.

Internal Tank Diffuser 5″ O.D. 500226

For ease of plumbing 2″ or 2.5″ FNPT ports into water tanks.

Use with 500227 2″ FNPT or 500228 2.5″ FNPT casting.

Tank Mounting Bracket 500141

Tank builders secure large wet-side tanks to the chassis frame with this specialty bracket.

Rod End 1/2 – 20, Crimp On (1.75″ Thread) 500075

Use our rod ends with your hydraulic crimper to quickly assemble control rods using our rod ends and 1/2″ galvanized pipe.

Zinc plated with 0.5-20 thread connects to most commercially available rod ends.  Contact us for information on crimping specifications.

3″ Akron / Elkhart Valve Handle 500079-3

500079-3  3.00″ Valve Handle

4″ and 5.75″ valve handles also available.

4″ Akron / Elkhart Valve Handle 500079-4

500079-4  4.00″ Valve Handle for Akron and Elkhart valves.

Also available in 3.00″ and 5.25″ lengths.



5.75″ Akron / Elkhart Valve Handle 500079-575

500079-575  5.75″ Valve Handle

3″ and 4″ valve handles also available.

4″ National Hose Thread x 4″ Weld 500201

Stock available December 2020.

6″ NST x 6″ Weld Fitting 500101

6″ National hose thread x 6″ pipe weld end.  Ideal for quickly adding hose threads to your manifold assembly without the hassle and leaks associated with thread on adapters.

Custom Stainless Steel Castings for Intake and Discharge Manifolds

With our extensive experience working with apparatus builders and pump companies, we can discretely design and produce an individual component or a complete intake/discharge manifold system to reduce assembly time, cost/labor.

Our cast intake/discharge manifold systems reduce or completely eliminate the need for on-site welding.

We provide design and as-built solid models to speed engineering time and professionally convey the final product to your customer.  Reduce shop floor hours by eliminating the guesswork and design-on-the-fly efforts.  If you can imagine it, we can design and produce it with production runs from 25 to thousands of pieces.

Contact Chris Magiera to review your custom manifold needs at 352.433.6279

Custom Ramshorn Castings

We design and produce ramshorn castings to fit all fire pump brands.

Contact us to produce a ramshorn and complete intake/discharge cast manifolds to meet your specific needs.

Custom Body and Bumper Caps

Looking for custom stainless steel body or bumper caps?   We have designed dozens of custom body caps for leading apparatus builders.  Whether it’s polished stainless steel or chrome-plated aluminum or die-cast zinc, we can design a part to your specific needs.

With very low production quantity minimums, we can start your design today and have actual cast product samples for your approval in as little as 90 days.

Contact Chris Magiera to review your body cap needs at 352.433.6279

Custom Nameplates and Logos

We produce custom stainless steel cast nameplates in quantities of as little as 50 pieces.  Chrome-plated zinc and composite materials are also available.

Contact us to design your next logo or branded product.

Custom Pump Panel Trim Rings

We supply polished cast stainless steel pump panel inlet and discharge trim rings with embedded text and logos.  We can produce trim rings in quantities as low as 25 pieces.

Contact us to design your next custom cast part.

Custom Chrome Plated Stanchions

We produce custom branded chrome plated stanchions for leading truck builders.   Look to use to produce a part to meet your specific needs.

Contact Chris Magiera to review your stanchion needs at 352.433.6279

Custom Steel Fabrications

Looking for steel, zinc-dichromate plated or painted custom steel parts?  We can assist you to design and supply components at competitive pricing with low minimum quantities.

Contact Chris Magiera to review your project at 352.433.6279
